Don't throw away your old stuff just yet

Apr 17th, 2026 - scudo

TV tuners are pretty cool! You can use them as makeshift capture cards :)

This is composite PAL video from a PS2. Looks pretty nice to me!

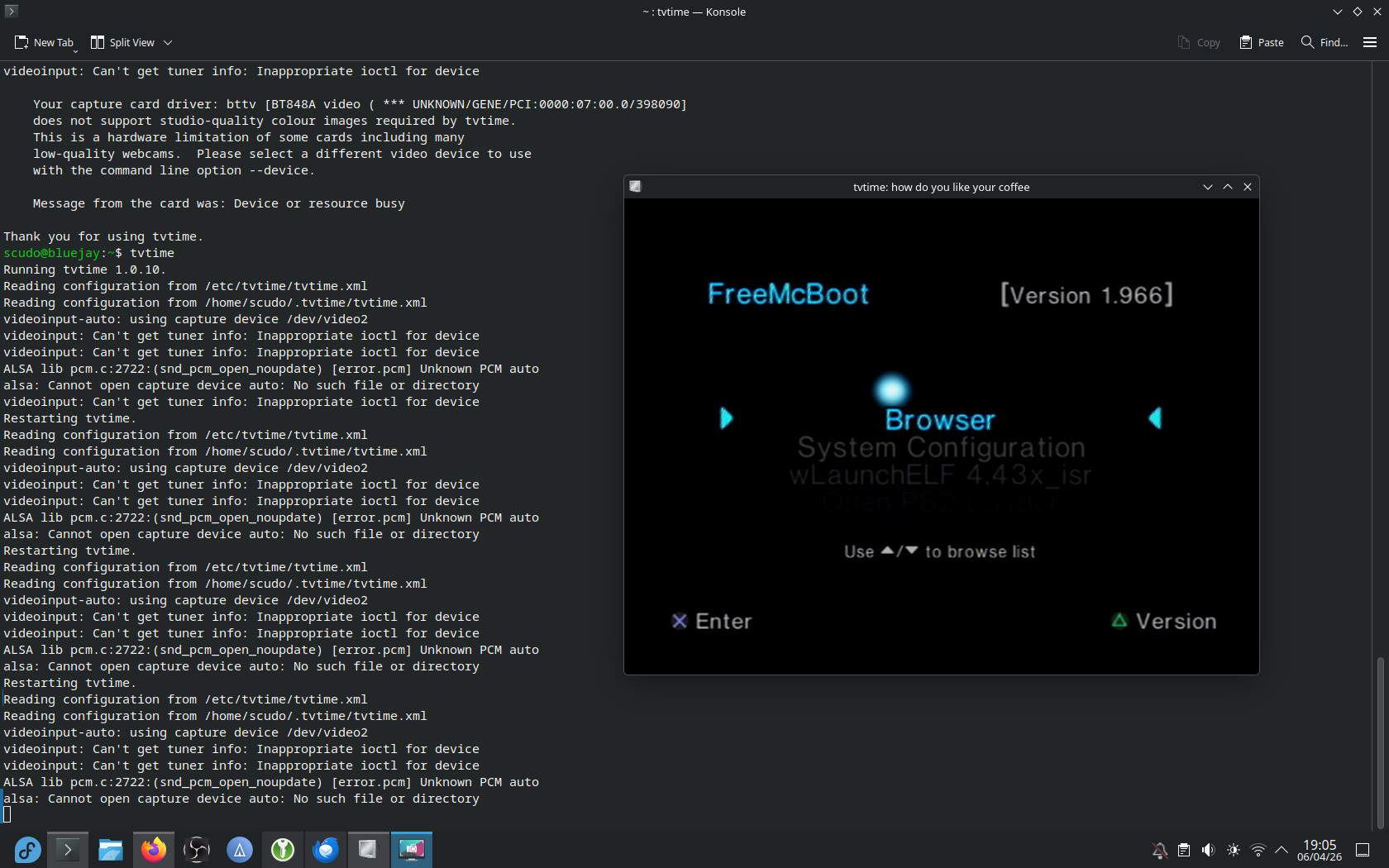

Capture test

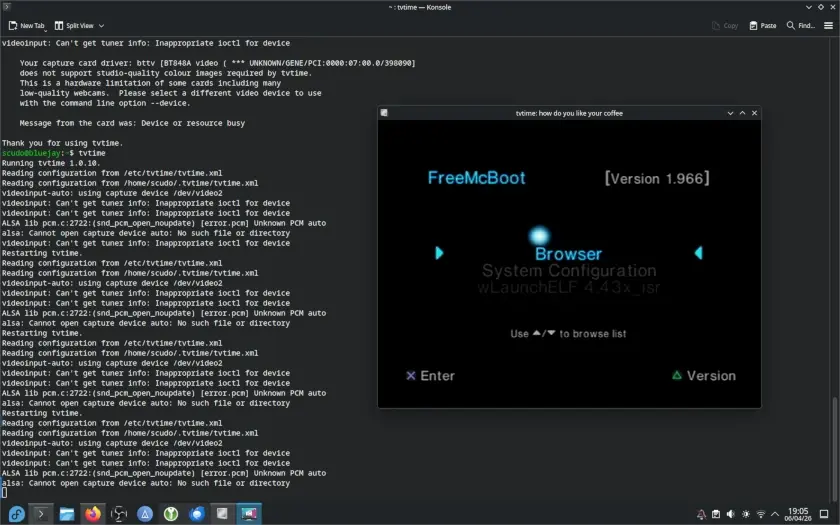

a screenshot showing two windows; one is a terminal window with debugging output, and the other shows a captured screen from a PS2 home screen

Notes for future me and the reader:
  1. This is a Miro PCTV tuner, based on the Brooktree Bt848 chipset.
  2. If your capture is very low res, try running tvtime, that should allow you to set the size of the captured image.
  3. If your capture is noise even when you connect the composite/S-Video cable, be aware that VLC is not aware of capture cards with multiple inputs (but OBS is!)
